| Parameter | Value |
| Thermal Conductivity (W/m·K) | 1.0–8.0 |
| Thickness (mm) | 0.3–5.0 |
| Hardness (Shore OO) | 20–60 |
| Dielectric Strength (kV/mm) | ≥5 |
| Volume Resistivity (Ω·cm) | ≥10¹² |
| Tensile Strength (MPa) | 0.5–1.5 |
| Elongation at Break (%) | 100–300 |
| Operating Temperature (°C) | -50 to 200 |
| Environmental Compliance | RoHS, REACH |

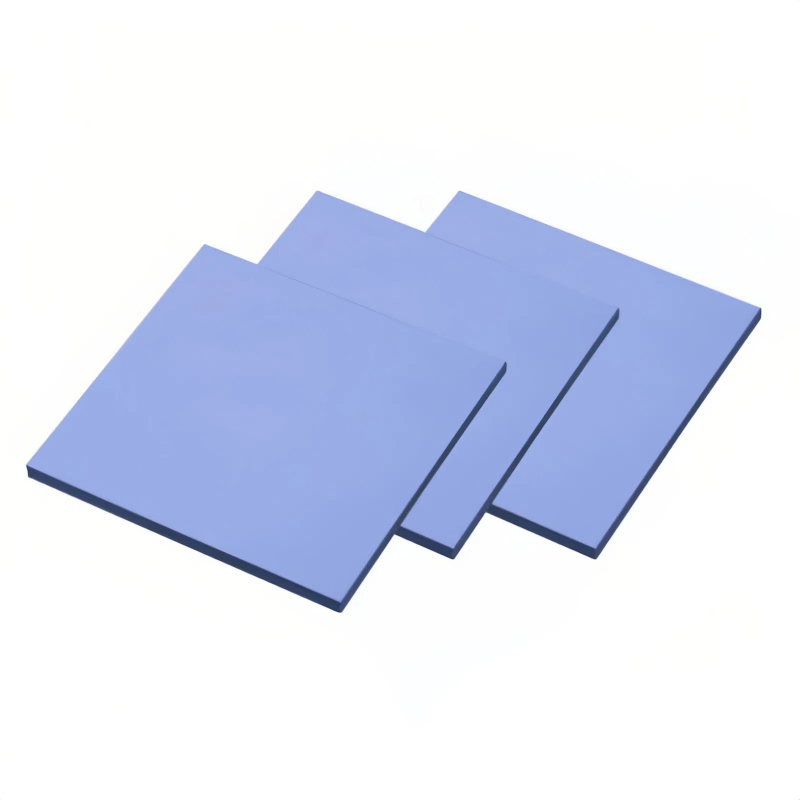

SENMA's Thermal Conductive Silicone Foam Pads are precision-engineered thermal interface materials designed for efficient heat dissipation in high-performance electronic and electrical applications. These custom-shaped pads provide excellent thermal conductivity, reliable electrical insulation, and consistent compression recovery in various configurations. The smooth surface ensures uniform contact and minimal thermal resistance across uneven components, while the soft silicone-based material offers superior flexibility and long-term stability under temperature cycling. Ideal for power devices, LED lighting, automotive electronics, and communication equipment requiring effective thermal management and electrical isolation.
Thermal Conductive Silicone Foam Pad is a high-performance thermal interface material (TIM) designed for heat dissipation in electronic devices. Composed of silicone elastomer filled with thermally conductive ceramic or metal oxide particles, it offers excellent thermal conductivity, electrical insulation, and flexibility.
It effectively fills air gaps between heat-generating components and heat sinks, significantly enhancing thermal management. With superior compression resilience and mechanical stability, it is ideal for long-term use in high-power-density applications.
Thermal Conductive Silicone Pads: Precision Engineered Heat Management Solutions

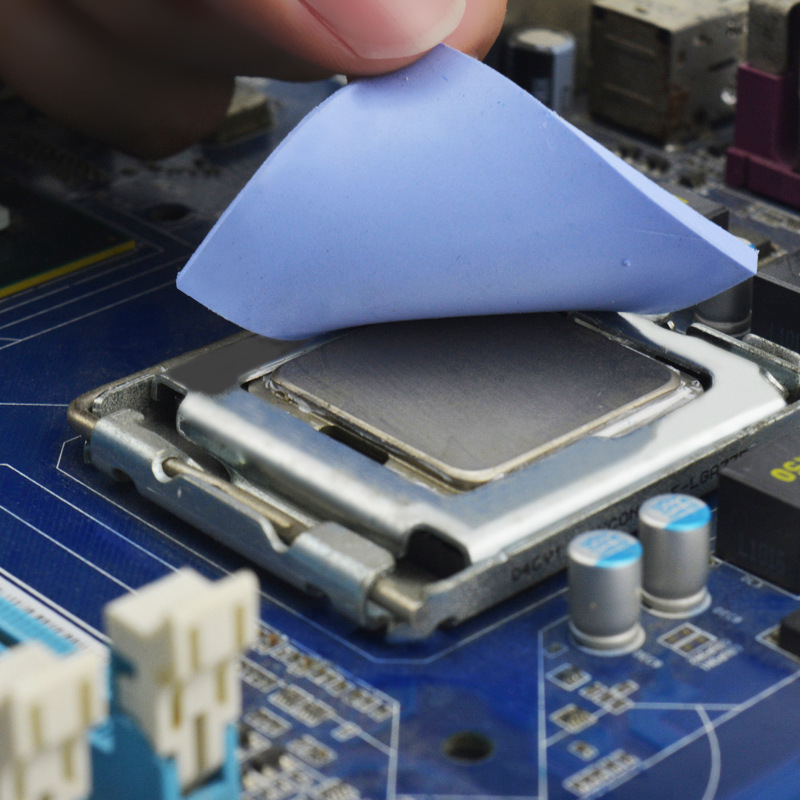

Thermal conductive silicone pads are essential thermal interface materials (TIMs) designed to efficiently transfer heat from electronic components to heat sinks or other cooling devices. These pads fill microscopic air gaps between surfaces, reducing thermal resistance and improving overall heat dissipation in electronic assemblies. Made from silicone elastomers filled with thermally conductive ceramics (like aluminum oxide, zinc oxide) or other advanced fillers, they provide both excellent thermal performance and reliable electrical insulation.
Precision Manufacturing and Key Properties
The performance of thermal conductive silicone pads hinges on precise manufacturing and material properties. These pads are often die-cut into specific shapes to meet exact dimensional requirements, ensuring perfect fit and optimal thermal transfer in complex assemblies.
Critical Properties of High-Performance Thermal Conductive Silicone Pads:

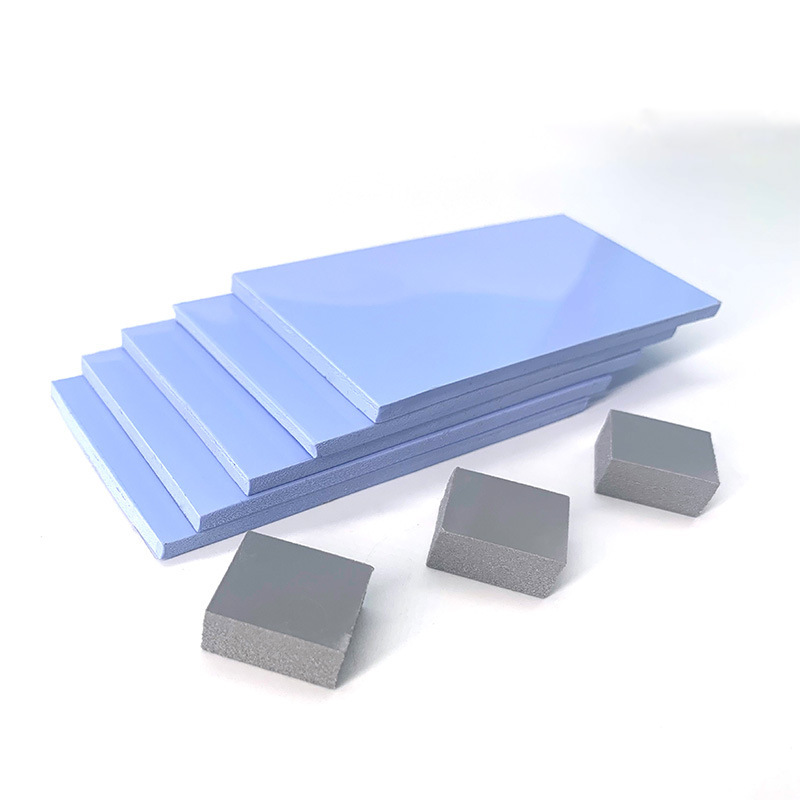

High Thermal Conductivity: Ranges typically from 1.0 W/m·K to 12.0 W/m·K, with some advanced formulations reaching even higher, ensuring efficient heat transfer away from critical components.
Low Thermal Resistance: This is a crucial measure of a material's effectiveness in resisting heat flow. A low value is essential for efficient heat dissipation.

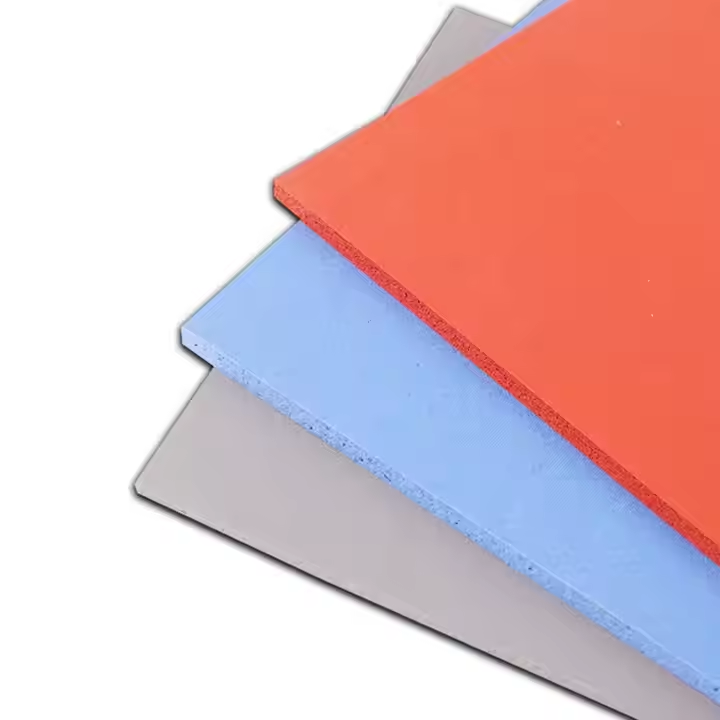

Excellent Electrical Insulation: They possess high dielectric strength (e.g., up to 9 kV/mm or even 8 kV/mm and high volume resistivity (e.g., 1×10¹³ Ω·cm), preventing electrical short circuits even in high-voltage applications.
Softness and Conformability: Their compliant nature allows them to conform to uneven surfaces and fill gaps, minimizing interfacial air pockets that impede heat transfer.
Flame Retardancy: Many grades comply with safety standards like UL 94 V-0, enhancing the safety of the end application.
Environmental Resistance: They exhibit good resistance to weathering, ozone, and a wide operating temperature range (often from -40°C to 200°C), ensuring performance under harsh conditions.
Low Compression Set and Long-Term Reliability: They maintain their sealing force and thermal performance over time, even under continuous compression and thermal cycling.
Design Flexibility and Manufacturing Excellence
The pad’s structural design integrates a flexible yet robust silicone foam with high thermal conductive fillers strategically dispersed to optimize heat flow, positioning it as a premium solution from a thermal conductive silicone pad supplier with advanced manufacturing capabilities. The available range of thicknesses (0.3–5mm) and die cut options enable precise customization aligned with diverse industrial design requirements. This modular adaptability allows simplified integration into complex component stacks while meeting rigorous OEM thermal conductive silicone pad specifications and production tolerances, ensuring consistent batch-to-batch reliability.
Enhanced Operational Performance and Application Versatility
Performance-wise, the soft thermal conductive silicone pad provides superior compression resilience, maintaining effective thermal contact even under fluctuating mechanical stresses and vibrations typical in automotive and communication equipment environments. Its stable dielectric properties support critical electrical insulation demands. These factors collectively enhance usability by reducing system downtime risk and improving overall thermal management efficiency, delivering measurable value for procurement and engineering teams seeking reliable custom silicone thermal pad manufacturer partners.
Material science plays a pivotal role in the performance of thermal pads. Studies focus on optimizing filler types (e.g., using a mix of large and small aluminum oxide particles), shapes, and concentrations within the silicone matrix to create efficient thermal pathways. Furthermore, properties like low outgassing are critical for applications in vacuum environments or sensitive optical systems, preventing contamination.
Versatile Applications Across Industries
Thermal conductive silicone pads are indispensable in virtually every sector where electronics generate heat.
Consumer Electronics: Used in smartphones, tablets, laptops, and gaming consoles for cooling CPUs, GPUs, and other ICs. Their softness protects delicate components from stress while managing heat.
Automotive Electronics: Critical for thermal management in engine control units (ECUs), battery management systems (BMS) for electric vehicles, LED lighting, power inverters, and infotainment systems, where reliability under extreme temperatures is paramount.
Telecommunications and Data Centers: Applied in 5G base stations, routers, switches, and servers to cool high-power amplifiers, processors, and ASICs, ensuring network stability and performance.
Industrial Electronics and Power Systems: Used in motor drives, programmable logic controllers (PLCs), power supplies, and renewable energy systems like solar inverters and wind turbine controllers to isolate and cool high-power semiconductor devices (IGBTs, MOSFETs).
LED Lighting: Essential for transferring heat from high-power LED chips to the heat sink, thereby maintaining light output efficiency and extending the lifespan of the lighting fixture.
Medical Devices: Found in diagnostic equipment like CT and MRI scanners, as well as portable monitors, where reliable thermal management and material stability are crucial.
Thermal Interface Material for Power Electronics Assemblies
In high-power electronic devices such as inverters and motor drives, thermal management is paramount to operational safety and efficiency. This high thermal conductive silicone pad functions as a critical interface between power semiconductors and heat sinks, effectively filling microscopic irregularities to minimize contact resistance and optimize thermal dissipation. Its electrical insulation capacity ensures safe separation of conductive elements. Integration into automated assembly lines as a die cut thermal conductive silicone pad supports streamlined production while meeting strict industry standards for reliability and thermal performance.
Heat Dissipation Enhancement in LED Lighting Systems
Within LED lighting manufacturing, maintaining optimal operating temperatures directly affects component longevity and light output consistency. This soft thermal conductive silicone pad serves to bridge heat sources and metal heat sinks in LED modules, compensating for surface roughness and ensuring uniform heat spread. Its compliance with environmental safety standards such as RoHS and REACH further supports use in environmentally conscious production processes. As a product from a trusted thermal conductive silicone pad manufacturer, it enhances both system robustness and regulatory compliance, aligning with workflows in quality-driven lighting assembly operations.
Choosing the right thermal pad involves balancing several factors:
Thermal Conductivity vs. Cost: Higher conductivity pads offer better performance but are typically more expensive.
Hardness (Softness) vs. Pressure: Softer pads conform more easily under lower mounting pressures but might be more difficult to handle during assembly.
Thickness: Must be chosen to fit the specific gap between the component and the heat sink, compensating for tolerances.
Dielectric Strength: A critical parameter for applications where electrical isolation is required.
Environmental and Regulatory Compliance: Requirements such as RoHS, REACH, and UL certifications may be necessary depending on the application and market .
Leading manufacturers are increasingly adopting sustainable practices. This includes optimizing die-cutting processes to minimize material waste, complying with international environmental regulations like RoHS and REACH, and exploring eco-friendly material alternatives without compromising the high-performance characteristics required by the industry.
"The high thermal conductivity and excellent insulation properties of these silicone pads significantly improved the reliability of our power converters."
— Senior Design Engineer, Power Electronics Industry
"We consistently use these pads for their reliable performance and ability to conform to uneven surfaces in our assembly process."
— Manufacturing Engineer, Automotive Sector
"Their technical support team was invaluable in selecting the right grade for our new medical device, ensuring both performance and biocompatibility."
— Project Manager, Medical Device Company
"The combination of strong thermal performance and flame retardancy is a must-have for our consumer electronics, and these pads deliver."
— Product Engineer, Consumer Electronics Brand
In summary, thermal conductive silicone pads are a critical component in modern electronics thermal management. Their ability to efficiently transfer heat, provide electrical isolation, and conform to various surfaces makes them a versatile and reliable solution for ensuring the longevity and performance of electronic devices across a vast range of industries.
About Us
SENMA is a leading manufacturer of silicone foam materials with over 15 years of expertise in R&D and production. We specialize in producing high-performance silicone foam sheets and rolls that meet the strict standards of industries such as automotive, electronics, and new energy. Our technical strength lies in advanced liquid silicone rubber foaming technology and a strong ability to customize density, thickness, and dimensions based on client needs.
Our factory is equipped with automated production lines and a strict quality management system that ensures consistent product performance. We follow ISO-certified procedures, implement full-process inspections, and maintain traceable quality records to guarantee every batch meets international expectations. From prototype development to bulk manufacturing, we maintain high precision and reliability.
At SENMA, sustainability is embedded in our production approach—we use eco-conscious materials and aim for waste reduction through process optimization. Our service model emphasizes fast response, technical collaboration, and long-term customer support. With a global footprint, we serve clients in North America, Europe, and Asia, delivering not just products, but value-added solutions that enhance efficiency and reduce total cost of ownership.
Partner with SENMA for dependable silicone foam solutions that meet your exact specifications. Contact us today to discuss how we can support your projects with our expertise and commitment to quality.
FAQ
Can you customize the thickness and size of the thermal conductive silicone pad?
Yes, we offer customization for the thickness of our thermal conductive silicone pad within the 0.3 to 5.0 mm range to meet varied industrial requirements. We can also tailor dimensions and adhesion to fit specific applications, ensuring the pad integrates seamlessly into your assembly.
What materials make up your thermal conductive silicone foam pad?
Our thermal conductive silicone pad is composed of a silicone elastomer matrix filled with thermally conductive ceramic or metal oxide fillers. This combination provides both high thermal conductivity and electrical insulation, suitable for demanding thermal management in electronic devices.
How do you support installation or integration of your thermal silicone pads in equipment?
We provide flexible silicone foam pads designed to conform to irregular surfaces, enabling easy installation and effective gap filling between heat-generating parts and heat sinks. For more complex needs, we offer custom die cut solutions to suit precise assembly geometries.
What shipping and quality standards do you maintain as a silicone foam pad supplier?
As an experienced thermal conductive silicone pad supplier, we adhere to strict quality controls and comply with RoHS and REACH environmental regulations. Our logistics processes ensure timely delivery, backed by rigorous testing to maintain product consistency and reliability for your projects.
