Selecting the right industrial sealing material is rarely as simple as comparing unit costs or reviewing standard specification sheets. Two materials may appear nearly identical on the receiving dock, yet exhibit drastically different performance profiles after years of exposure to continuous sunlight, ambient moisture, dynamic vibration, and severe thermal cycling.
Silicone foam and EPDM foam are prime examples of this divergence. While both are widely deployed in industrial seals, electrical enclosures, EV battery packs, and outdoor cabinets, their underlying polymer chemistry leads to stark differences under harsh operating conditions.
This technical guide evaluates the practical performance differences between closed-cell silicone foam and EPDM rubber foam, helping engineers, B2B buyers, and product designers choose the optimal sealing material for long-term reliability.

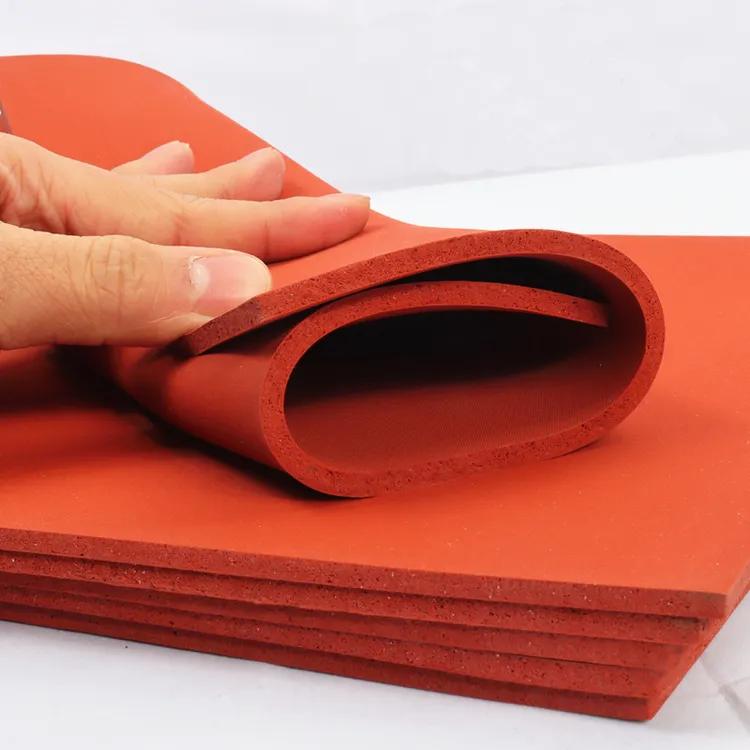

Silicone foam is a lightweight, cellular silicone elastomer engineered for high-performance thermal insulation, flame retardancy (reaching UL94-V0 standards), and environmental sealing. Built with a highly stable inorganic silicon-oxygen (Si-O) backbone, silicone foam exhibits exceptional resistance to high temperatures, ozone, and UV oxidation.
EPDM (Ethylene Propylene Diene Monomer) foam is a versatile synthetic rubber foam valued for its cost-effectiveness and solid resistance to weather, ozone, and water. Derived from an organic hydrocarbon backbone, it serves as an industry-standard choice for medium-duty outdoor applications.
To help you evaluate material trade-offs quickly, the table below breaks down the key performance parameters of closed-cell silicone foam versus closed-cell EPDM foam:
| Performance Parameter | Silicone Foam | EPDM Foam |
|---|---|---|
| Operating Temperature Range | -60°C to +250°C (Extreme) | -40°C to +120°C (Moderate) |
| High-Temperature Thermal Aging | Excellent (Does not harden/crack) | Limited (Degrades above 120°C) |
| Compression Set Resistance | Superior (<10-15% permanent deformation) | Moderate to Good |
| Flame Retardancy Rating | Inherently High (Up to UL94-V0) | Requires special flame retardants |
| UV & Ozone Aging Resistance | Exceptional (20+ years outdoor life) | Very Good (10+ years outdoor life) |
| Water & Moisture Sealing | Excellent (IP67 / IP68 Rated) | Good (IP65 Rated) |
| Relative Material Cost | Higher (Premium performance) | Lower (Economical choice) |
Silicone foam is the preferred choice when system failure carries significant financial or safety risks. Key industry applications include:
EPDM foam remains the smart engineering choice when thermal exposure is low and project budget control is paramount. Common applications include:
Ask these key engineering questions to pinpoint the best material for your custom die-cut components:
Yes. While EPDM handles UV and moisture very well, silicone foam features an inorganic polymer backbone that resists oxidation, ozone, and solar radiation far better over extended periods (20+ years), without hardening or cracking.
In most modern EV battery packs and energy storage cabinets, silicone foam is preferred over EPDM due to its superior flame retardancy (UL94-V0), thermal insulation, and low compression set under continuous clamping force.
Yes. As a direct manufacturer of high-performance silicone foam, SENMA offers custom sheet thicknesses, densities, adhesive backings (PSA), and precision die-cut gasket prototyping within 3–5 working days.
Choosing between silicone foam and EPDM foam isn't about finding a single "better" material—it's about matching material chemistry to your exact operating environment, lifetime expectations, and compliance needs.
Need expert material advice or custom-engineered silicone foam samples for your project?
Contact our technical engineering team today to request Free Silicone Foam Samples, custom density/thickness specifications, or precision die-cutting consultations.
