Silicone foam is often asked to do several jobs at once: insulate, seal, cushion components, and survive high or low temperatures. Whether it is the right material for a thermal application depends on what the design actually needs, slowing heat transfer or moving heat away from a component.
This guide explains how silicone foam thermal conductivity works, how it differs from thermal insulation and thermal resistance, and how to judge whether silicone foam or a thermally conductive silicone pad is the better choice for your assembly.

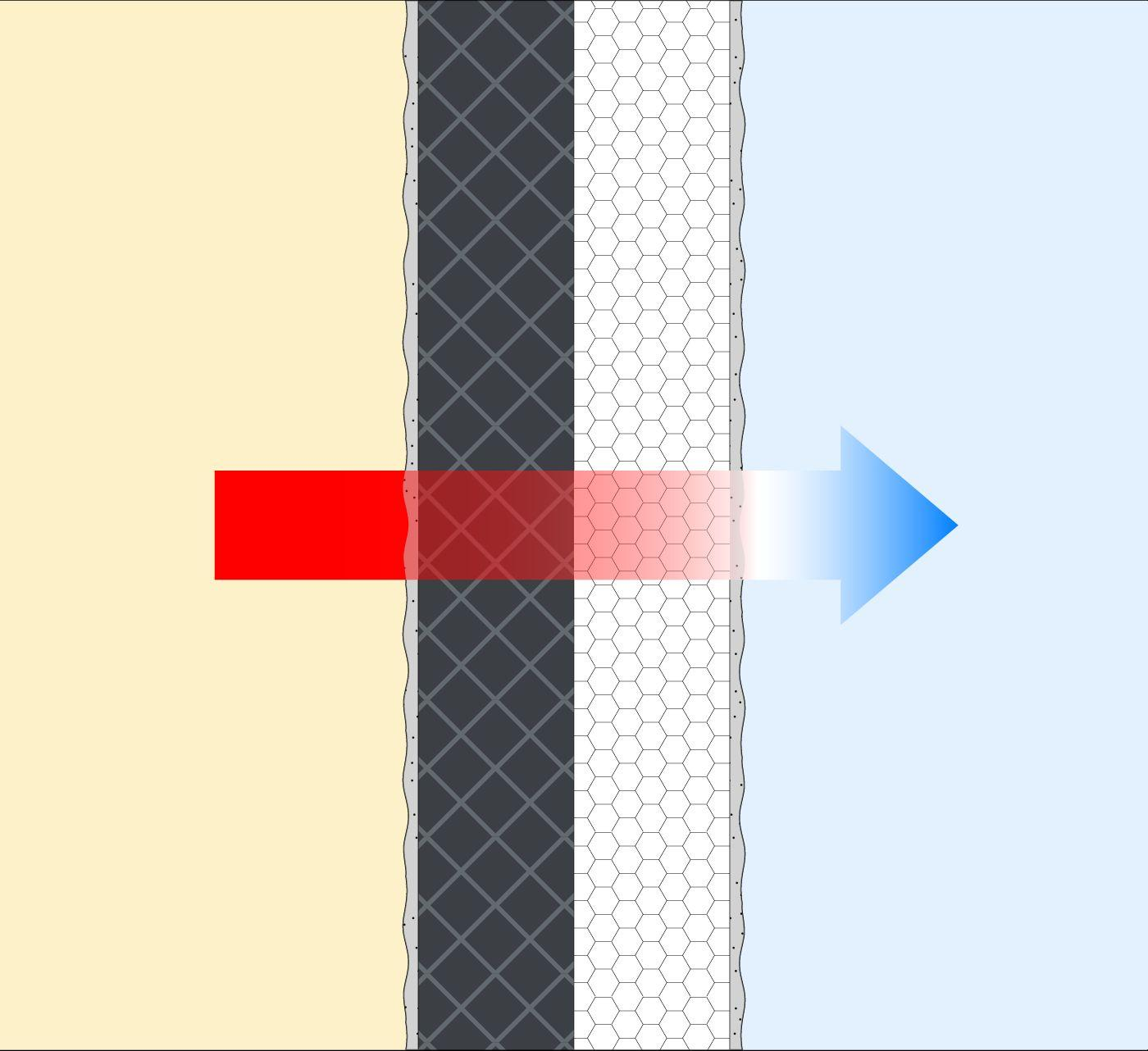

Silicone foam thermal conductivity describes how readily heat passes through a silicone foam material. Thermal conductivity is commonly represented by the symbol k or λ, with units of watts per meter-kelvin (W/m·K). In simple terms, it helps engineers understand how easily heat travels through a material.
A material with lower thermal conductivity generally resists heat transfer more effectively, while a material with higher thermal conductivity allows heat to pass through more readily, assuming comparable conditions. However, thermal conductivity is only one part of the picture.
The actual heat transfer through a silicone foam component also depends on its thickness, contact conditions, temperature difference, and geometry. For example, a thick foam layer may provide more thermal resistance than a thin layer of the same material. This distinction becomes important when designing insulation, electronic housings, battery systems, and industrial equipment.
These terms are related, but they are not interchangeable.
| Property | What It Means | Why Engineers Care |
|---|---|---|
| Thermal conductivity | How readily heat travels through a material | Helps compare materials' heat-transfer characteristics |
| Thermal resistance | How strongly a component resists heat flow under specified conditions | Helps evaluate the effect of material thickness and geometry |
| Thermal insulation | The function of reducing unwanted heat transfer | Helps protect components or maintain temperature differences |
| Heat dissipation | The removal of heat from a component or system | Helps prevent excessive operating temperatures |
| Heat resistance | The ability to withstand elevated temperatures without unacceptable degradation | Helps determine material suitability for hot environments |
For a uniform layer under simplified steady-state conditions, thermal resistance per unit area can be expressed as:
R = t / k
Where:
R = thermal resistance per unit area (m²·K/W)
t = material thickness (m)
k = thermal conductivity (W/m·K)
This relationship assumes a uniform layer and does not account for contact resistance or more complex heat-transfer effects. The practical takeaway is straightforward: thermal conductivity describes a material property, while thermal resistance also depends on the thickness of the material.
Silicone foam can be used for thermal insulation in suitable applications. Its cellular structure contains gas-filled spaces that can reduce heat transfer compared with a solid material of otherwise comparable construction. The actual performance depends on the foam structure, formulation, density, and thickness.
Silicone foam may be considered where thermal insulation needs to be combined with other properties.
Not every silicone foam grade offers the same thermal performance. A supplier's technical data should be reviewed before specifying a material for a temperature-sensitive application.

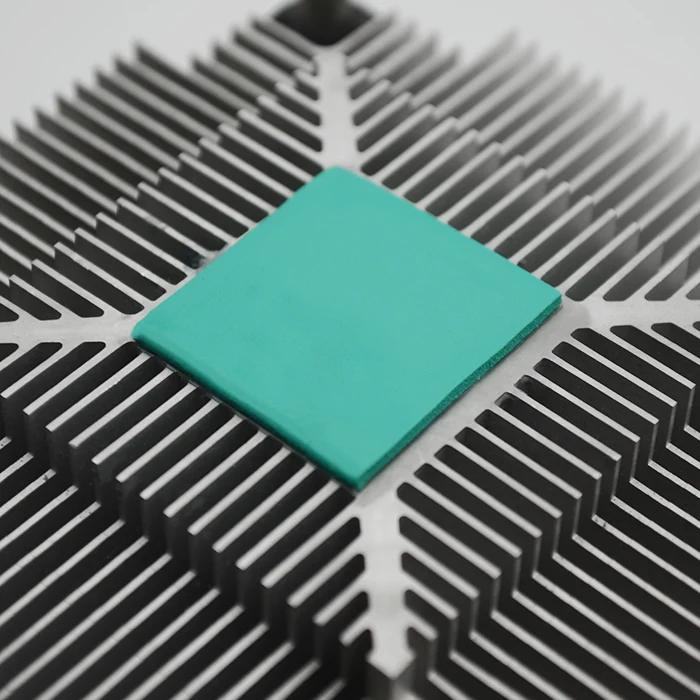

This is an important distinction in electronics and battery design. Silicone foam and thermally conductive silicone pads may both be silicone-based materials, but they are often designed for different purposes.
A common design mistake is to select silicone foam when the real requirement is to remove heat from a processor or power component. If heat needs to move efficiently from a component to a heat sink, a thermally conductive silicone pad may be more appropriate.
If the goal is to reduce heat transfer, seal an enclosure, or cushion components, silicone foam may be a better candidate. The correct choice depends on the intended function.
Thermal performance is influenced by more than the material name.
Density describes mass per unit volume. It can affect the cellular structure and mechanical properties of silicone foam, but density alone cannot establish thermal conductivity. Two foam grades with similar densities may have different thermal properties because their formulations and cell structures differ.

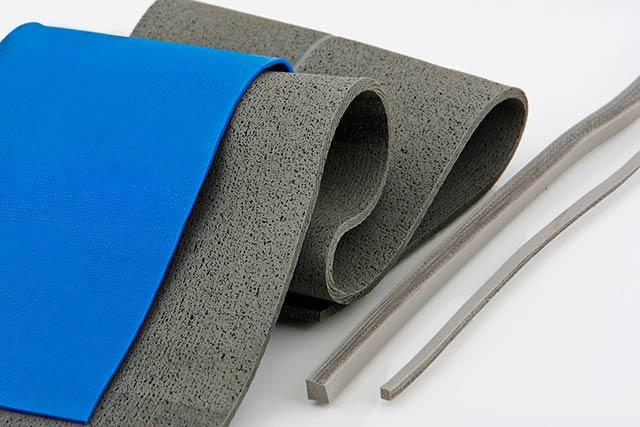

Open-cell and closed-cell foams have different internal structures.
Cell structure can influence heat transfer, but it is not enough to predict a specific thermal conductivity value. Ask for measured data for the actual grade.
Thickness directly affects the thermal resistance of a uniform layer. For the same material and under the same simplified conditions, increasing thickness increases thermal resistance. However, excessive thickness may create assembly problems or lead to unsuitable compression.
Thermal conductivity and mechanical properties may vary with temperature. If the foam will operate across a broad temperature range, request data relevant to the expected operating conditions.
Compression changes the foam's geometry and may alter its cellular structure and contact conditions. For a compressed gasket, the thermal behavior in the installed state may differ from the value measured on an uncompressed specimen. Where thermal performance is important, evaluate the material under conditions representative of the finished assembly.

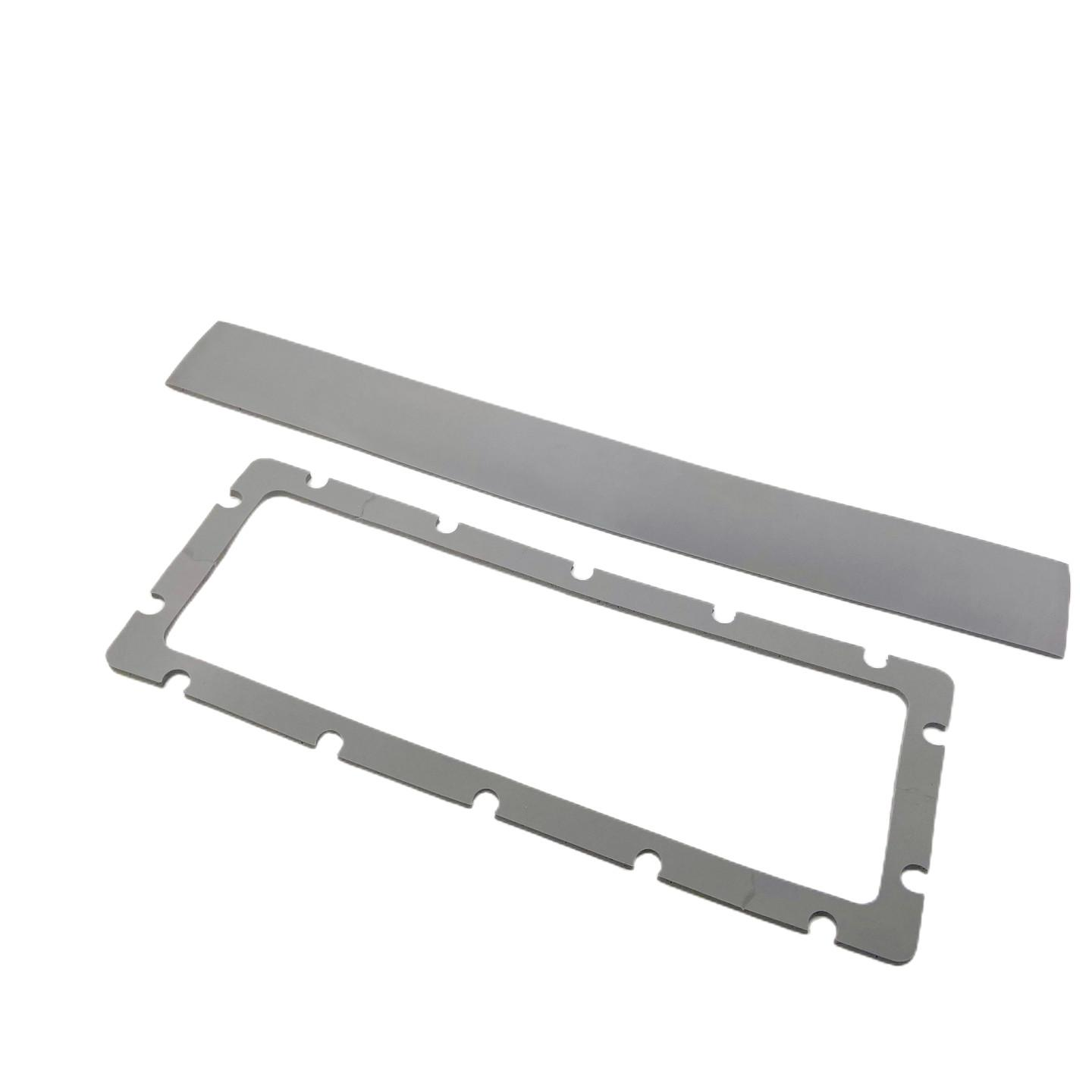

Silicone foam can serve several functions in battery systems and electronic equipment, but it should not be assumed to provide every thermal-management function at once.
Battery and energy-storage designs may also have specific flame, smoke, electrical, and thermal-runaway requirements. Ordinary silicone foam should not be assumed to meet these requirements without relevant test evidence.
Start with the job the material must perform. Then evaluate the properties that directly affect that job.
| Step | Question | Why It Matters |
|---|---|---|
| 1. Define the function | Do you need insulation, sealing, cushioning, or heat transfer? | Prevents selecting the wrong material category |
| 2. Define the temperature | What are the normal, minimum, and maximum temperatures? | Establishes the service conditions |
| 3. Define the gap | What are the minimum and maximum assembly gaps? | Determines the required thickness and compression |
| 4. Check compression | How much will the foam be compressed? | Affects sealing and installed geometry |
| 5. Review cell structure | Is open-cell or closed-cell construction suitable? | Helps address airflow and moisture-sealing requirements |
| 6. Request thermal data | Is measured thermal conductivity available? | Enables meaningful comparison |
| 7. Verify other requirements | Are electrical insulation, flame performance, or environmental resistance required? | Identifies additional qualification needs |
| 8. Test the assembly | Does the material perform in the actual design? | Confirms suitability beyond a datasheet comparison |
When comparing suppliers, use consistent test conditions and ask whether the stated thermal conductivity was measured at a relevant temperature.
For a silicone foam inquiry, provide as many of these details as possible.
If the main goal is thermal insulation, explain what must be protected from heat and the temperature difference expected across the foam.
If the goal is heat dissipation, specify the heat source, interface gap, available contact pressure, and heat sink arrangement.
This information helps determine whether silicone foam or another silicone material is the better solution.
Suitable silicone foam grades can help reduce heat transfer. Actual performance depends on thermal conductivity, thickness, cellular structure, temperature, and installation conditions.
Thermal conductivity varies by grade and formulation. Do not assume a value from the material name alone; request measured data for the specific product.
Thermal conductivity describes how readily heat passes through a material. Thermal resistance describes how strongly a component resists heat flow and depends on conductivity, thickness, and geometry.
It may be suitable for sealing, cushioning, or insulation around electronics. If the goal is to transfer heat from a processor or power component to a heat sink, a thermally conductive silicone pad may be more appropriate.
For the same material under comparable conditions, a thicker layer generally provides greater thermal resistance. The final design must also account for compression, available space, and mechanical requirements.
Neither structure is universally better. Thermal performance depends on the specific grade, while moisture sealing and airflow requirements may favor one structure over the other.
Silicone foam can be useful in applications requiring thermal insulation, sealing, cushioning, and temperature resistance. But these properties should not be treated as interchangeable.
For effective material selection, begin by identifying whether the design needs to slow heat transfer or move heat efficiently. Then consider thermal conductivity, thickness, density, cell structure, compression, and the service environment.
For electronics, battery systems, industrial enclosures, and thermal-processing equipment, the best material is the one that meets the actual design requirements and has supporting technical data.
If you are evaluating silicone foam for a specific application, define the thermal objective first and confirm performance under representative operating conditions.
