Choosing the right silicone foam pad for a hat heat press machine is essential for achieving consistent heat transfer results. The correct pad should fit the machine, accommodate the curved surface of the hat, and withstand the required operating temperature.
Whether you are replacing a worn pad or sourcing a custom-shaped silicone foam pad for your equipment, this guide will help you choose the right size, thickness, hardness, and material.

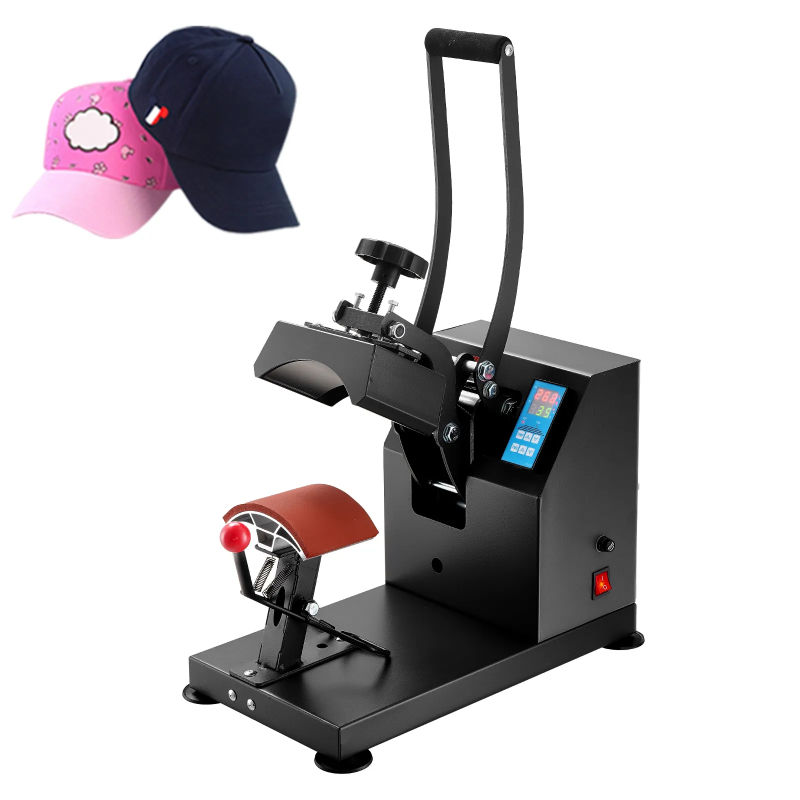

Hat heat press machines are designed to work with curved surfaces. Unlike flat heat press machines, they require a pad that matches the shape of the heating platen and the area being pressed.
Before ordering, check:
Standard rectangular pads may not fit every machine. A custom-shaped silicone foam pad can be manufactured according to your drawings, samples, or specified dimensions.
Thickness affects how the pad fits the machine and accommodates the pressing surface. A pad that is too thick or too thin may affect installation and pressing consistency.

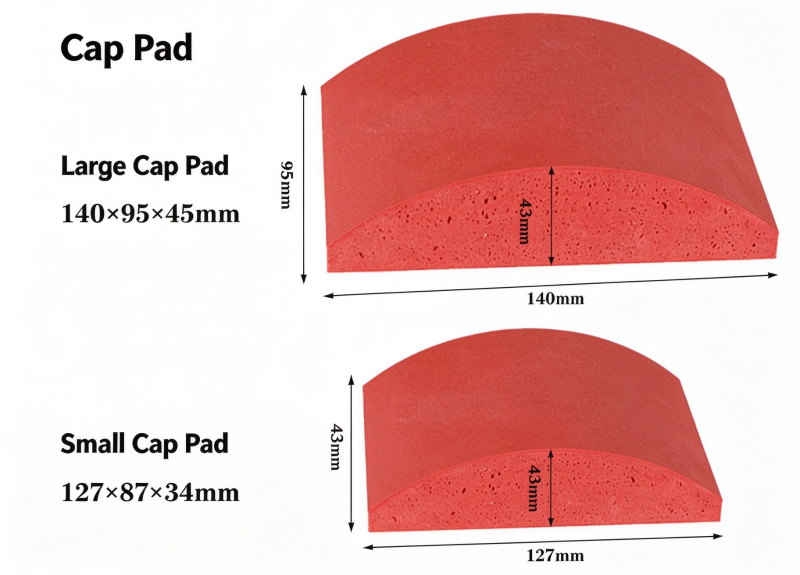

For example, our custom silicone foam pads are available in two reference sizes:
| Pad Type | Dimensions |
|---|---|
| Large silicone foam pad | 140 × 95 × 45 mm |
| Small silicone foam pad | 127 × 87 × 34 mm |
These dimensions are reference options rather than universal standards for all hat heat press machines.
How to choose: Measure your existing pad and confirm the machine's available space before selecting a replacement. If neither size fits, request a custom size.
Silicone foam hardness affects how the pad responds to compression and conforms to the pressing surface.
The best hardness depends on the machine design, required compression, hat material, and pressing process.
Our silicone foam pads offer a reference hardness range of 10–30 Shore A, with customization available. Confirm the hardness scale and test method when comparing specifications from different suppliers.
A silicone foam pad used in a hat heat press must be suitable for the actual temperature and operating conditions of the application.
Our pads have a stated temperature range of -60°C to 260°C.
Before selecting a product, consider:
The maximum stated temperature does not automatically mean the pad can withstand every temperature continuously under compression. Confirm the supplier's test data and recommended operating conditions for your application.
Silicone foam can provide both cushioning and thermal insulation, making it suitable for selected heat press applications.
Our product has a reference thermal conductivity of approximately 0.06 W/m·K.
When evaluating a pad, consider whether its compression behavior, thermal properties, and shape are compatible with your equipment. The final pressing result also depends on temperature, pressure, dwell time, transfer material, and machine setup.
For critical applications, request sample testing before placing a bulk order.
Choosing between a standard size and a custom-made pad depends on your machine and purchasing requirements.
| Selection Factor | Standard Size | Custom-Made Pad |
|---|---|---|
| Dimensions | Fixed reference sizes | Made to specified dimensions |
| Shape | Limited options | Custom profiles and contours |
| Machine compatibility | Must be verified | Designed around supplied requirements |
| Color and hardness | Subject to availability | Customization may be available |
| Best suited for | Compatible existing equipment | Special machine designs or replacement requirements |
If your machine uses a non-standard curved pad, custom manufacturing can help achieve a closer dimensional fit.
A supplier may be able to develop the pad using a technical drawing, an existing sample, or a complete set of dimensions.
To help a manufacturer recommend the right silicone foam pad, prepare the following information:
Providing this information helps reduce unnecessary sampling and makes it easier to evaluate product compatibility.
Not necessarily. A flat silicone pad may not match the curved surface or installation requirements of a hat press. Check the required shape, dimensions, thickness, and compression behavior before choosing a replacement.
Yes. Depending on the manufacturer's capabilities, silicone foam pads can be customized in shape, dimensions, thickness, hardness, density, and color. Drawings and physical samples can help establish the required specifications.
The stated temperature range for our product is -60°C to 260°C. Actual suitability depends on the operating conditions, exposure time, and mechanical loading.
Compare the full dimensions with your machine and existing pad. The 140 × 95 × 45 mm and 127 × 87 × 34 mm options are reference sizes. Always confirm compatibility before ordering.
You can submit a sample or technical drawing for evaluation. The manufacturer can then confirm whether the required geometry and specifications can be produced.
Looking for a custom silicone foam pad for a hat heat press machine?
We supply customizable silicone foam pads for selected heat transfer and thermal pressing applications, with options for dimensions, shapes, hardness, and colors.
Send us your drawing, sample, or required dimensions to discuss a suitable solution for your equipment.
Contact us today for a custom quote and product evaluation.
